17 Standardized effect sizes and range restriction ✎ Very rough draft

17.1 Dependencies

library(tidyverse)
library(scales)
library(sn)
library(janitor)
library(effsize)
library(faux)

17.2 Load data

Real BDI-II data is taken from Cataldo et al. (2022) Abnormal Evidence Accumulation Underlies the Positive Memory Deficit in Depression, doi: 10.1037/xge0001268.

data_bdi <- read_csv("../data/bdi_data.csv")

17.3 Why standardize?

They have different possible ranges, different population means (\(\mu\)), and different population SDs (\(\sigma\)).

Even if had perfect that a given therapy has a (population) efficacy of lowering BDI-II depression scores by 6 points, without knowing a lot about the relationships between the BDI-II and other scores, we know little about how many points the same therapy would affect depression scores on the MADRS or the HAM-D.

(surprisingly, very little work is ever done to collect information on the relationship between different scores so that we could know this)

Imagine three different published RCTs, each of which studied the efficacy of the same form of cognitive behavioral therapy for depression:

RCT 1 found that it lowered depression scores on the BDI-II by 6 points on average
RCT 2 found that it lowered depression scores on the MADRS by 8 points on average
RCT 3 found that it lowered depression scores on the HAM-D by 4 points on average

What is the efficacy of the intervention for depression scores on the PHQ-9? This is impossible to answer without knowing a lot about the details of the different scales (e.g., their min/max scores), the distribution of each scale’s scores in the population (eg population \(\mu\) and \(\sigma\)), and the relationship between different depression scales in the population. A one-point-change on one scale likely has a very different meaning to a one-point-change on another scale.

What is the efficacy of the intervention for depression in general? This too is impossible to answer as there is no common scale between them.

‘Standardized’ effect sizes are useful here as they provide common units. Instead of points on the self-report scale (i.e., sum scores), which differ between scales, standardized effect sizes generally use Standard Deviations as their units. For example, Cohen’s d = 0.2 means that there are 0.2 Standard Deviations of difference between the two groups.

In principle, standardized effect sizes are extremely useful as they allow us to draw comparisons between studies using very different outcome measures, or indeed to synthesise results between such studies (i.e., meta-analysis).

17.3.1 Visualise

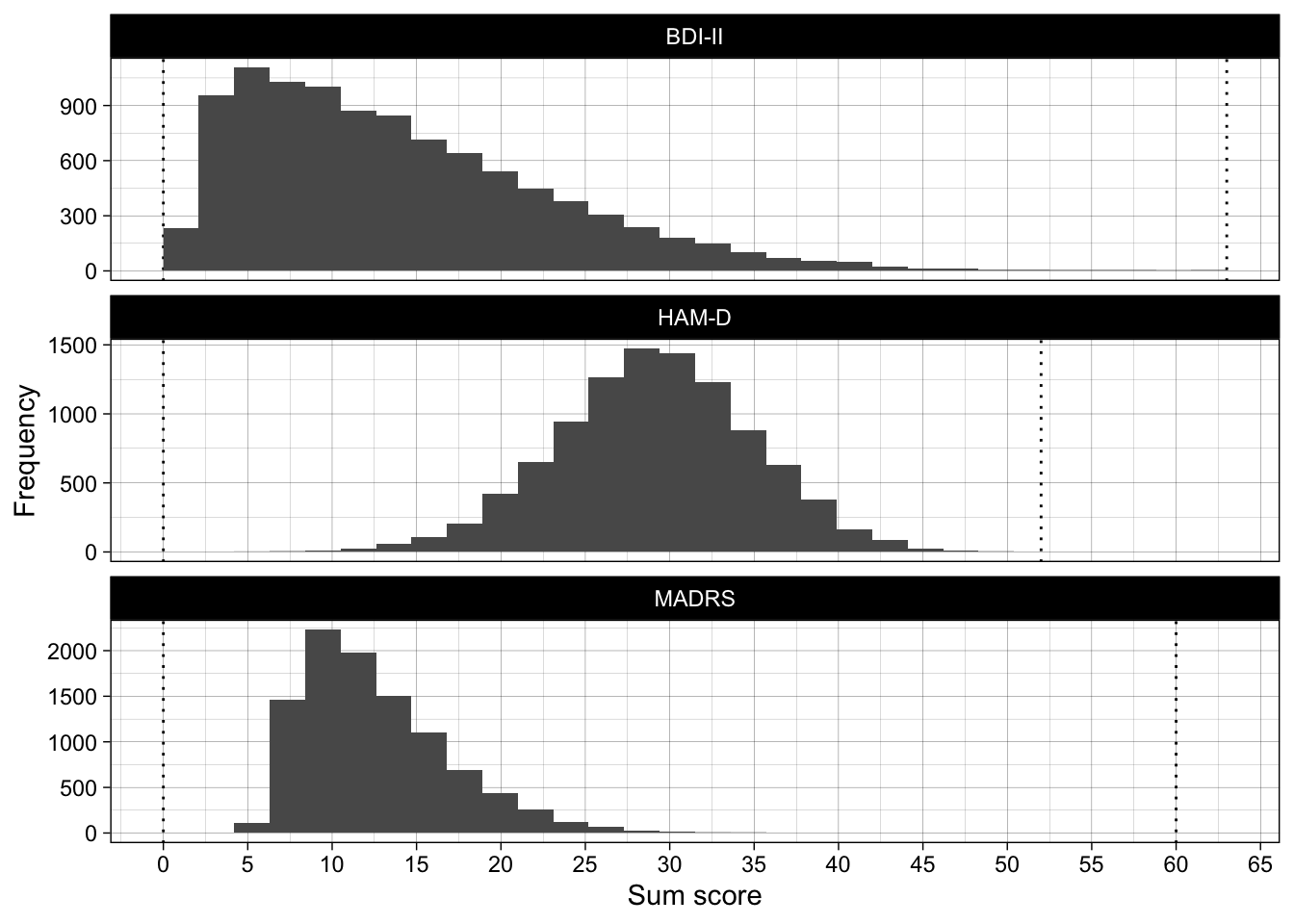

Semi-realistic depression scores on different scales.

N <- 10000

generated_data <-
  bind_rows(
    tibble(measure = "BDI-II",
           score = rsn(n = N,
                       xi = 2,  # location
                       omega = 15, # scale
                       alpha = 16),
           max_score = 63), # skew
    tibble(measure = "HAM-D",
           score = rsn(n = N,
                       xi = 33,  # location
                       omega = 7, # scale
                       alpha = -1),
           max_score = 52), # skew
    tibble(measure = "MADRS",
           score = rsn(n = N,
                       xi = 7,  # location
                       omega = 7, # scale
                       alpha = 9),
           max_score = 60) # skew
  ) |>
  mutate(score = case_when(score < 0 ~ 0,
                           score > max_score ~ max_score,
                           TRUE ~ score))


ggplot(generated_data, aes(score)) +
  geom_vline(aes(xintercept = 0), linetype = "dotted") +
  geom_vline(aes(xintercept = max_score), linetype = "dotted") +
  geom_histogram(boundary = 0) +
  scale_x_continuous(breaks = breaks_pretty(n = 10)) +
  facet_wrap(~ measure, ncol = 1, scales = "free_y") +
  theme_linedraw() +
  ylab("Frequency") +
  xlab("Sum score")

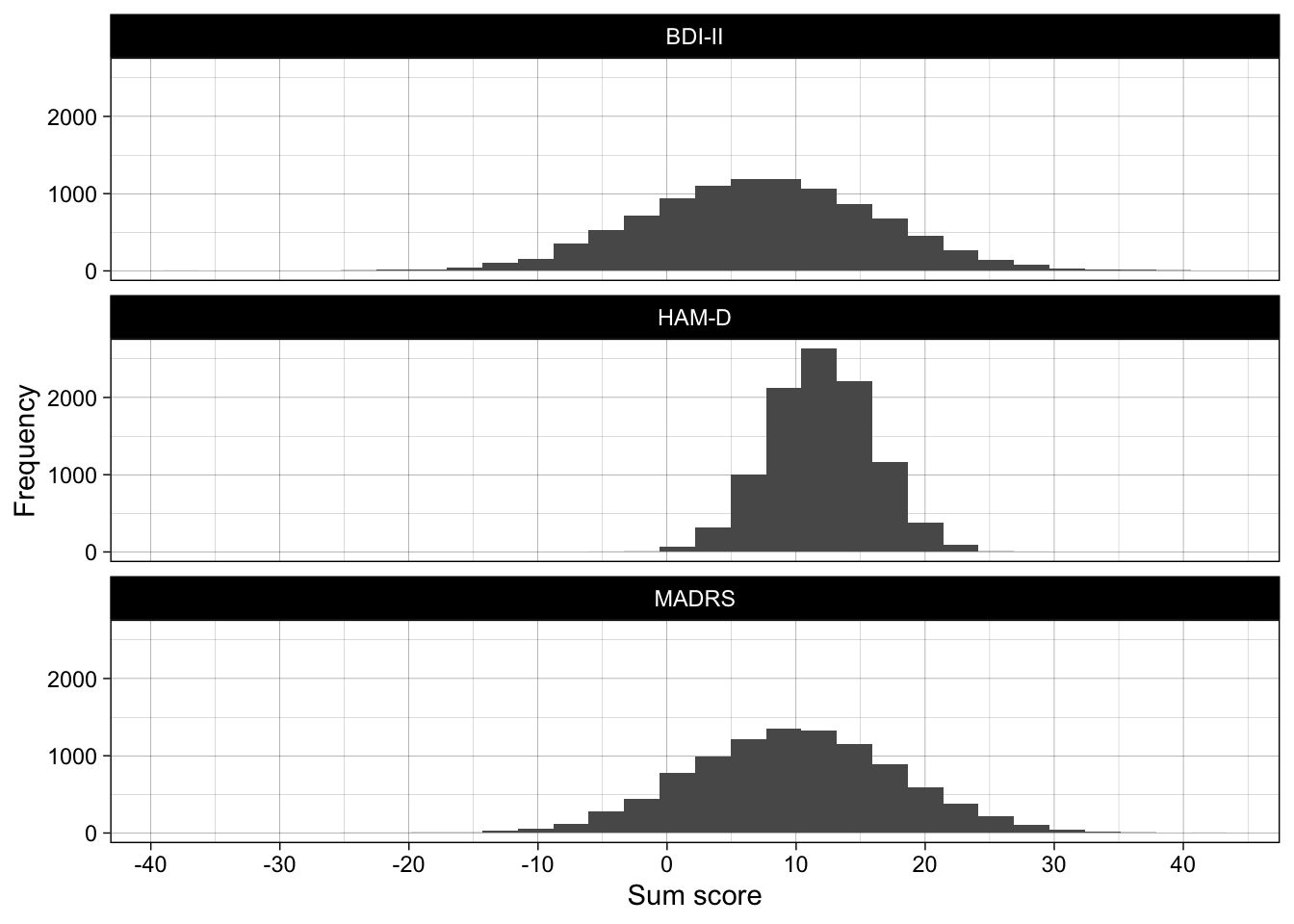

For the moment, let’s pretend like these scales produce continuous normal data that only differ in their population location (\(\mu\)) and scale (\(\sigma\)):

generated_data <-
  bind_rows(
    tibble(measure = "BDI-II",
           score = rnorm(n = N, mean = 7, sd = 9),
           max_score = 63),
    tibble(measure = "HAM-D",
           score = rnorm(n = N, mean = 12, sd = 4),
           max_score = 52),
    tibble(measure = "MADRS",
           score = rnorm(n = N, mean = 10, sd = 8),
           max_score = 60)
  )

ggplot(generated_data, aes(score)) +
  geom_histogram() +
  scale_x_continuous(breaks = breaks_pretty(n = 10)) +
  facet_wrap(~ measure, ncol = 1) +
  theme_linedraw() +
  ylab("Frequency") +
  xlab("Sum score")

A one-point change on the BDI-II still means something very different to a one-point change on the MADRS or HAM-D.

Data for a single sample can be standardized by taking each participant’s score, deducting the mean score (the sample estimate of \(\mu\)), and then dividing by the SD of scores (the sample estimate of \(\sigma\)). Now, all scales have a mean of 0 and an SD of 1. A one-point change on any scale has the same interpretation: a one-standard deviation change on that scale’s scores:

generated_data <-
  bind_rows(
    tibble(measure = "BDI-II",
           score = rnorm(n = N, mean = 0, sd = 1),
           max_score = 63),
    tibble(measure = "HAM-D",
           score = rnorm(n = N, mean = 0, sd = 1),
           max_score = 52),
    tibble(measure = "MADRS",
           score = rnorm(n = N, mean = 0, sd = 1),
           max_score = 60)
  )

ggplot(generated_data, aes(score)) +
  geom_histogram() +
  scale_x_continuous(breaks = breaks_pretty(n = 10)) +
  facet_wrap(~ measure, ncol = 1) +
  theme_linedraw() +
  ylab("Frequency") +
  xlab("Standaridized scores\n(score - mean)/SD")

Yay, now we have scores that can be compared between scales, e.g., in a meta-analysis.

How can this go wrong?

17.4 Influence of preselection on Cohen’s d

Note that in the below, only data at pre is real BDI-II data. Data at post is modified data (i.e., offset by known amounts).

17.4.1 Example 1

17.4.1.1 Wrangle/simulate

set.seed(42)

subset_no_preselection <- data_bdi |>
  rename(control = bdi_score) |>
  # simulate a 'intervention' score that is 5 points lower than pre
  mutate(intervention = control - 5) |>
  # sample 100 participants from the real data
  slice_sample(n = 100) |>
  mutate(recruitment = "General population") |>
  # reshape
  pivot_longer(cols = c(control, intervention),
               names_to = "condition",
               values_to = "bdi_score") |>
  mutate(condition = fct_relevel(condition, "control", "intervention"))


subset_preselection_for_severe <- data_bdi |>
  rename(control = bdi_score) |>
  # simulate recruitment into the study requiring a score of 29 or more at pre ("severe" depression according to the BDI-II manual)
  filter(control >= 29) |>
  # simulate a 'intervention' score that is 5 points lower than pre
  mutate(intervention = control - 5) |>
  # sample 100 participants from the real data
  slice_sample(n = 100) |>
  mutate(recruitment = "'Severe' depression") |>
  # reshape
  pivot_longer(cols = c(control, intervention),
               names_to = "condition",
               values_to = "bdi_score") |>
  mutate(condition = fct_relevel(condition, "control", "intervention"))

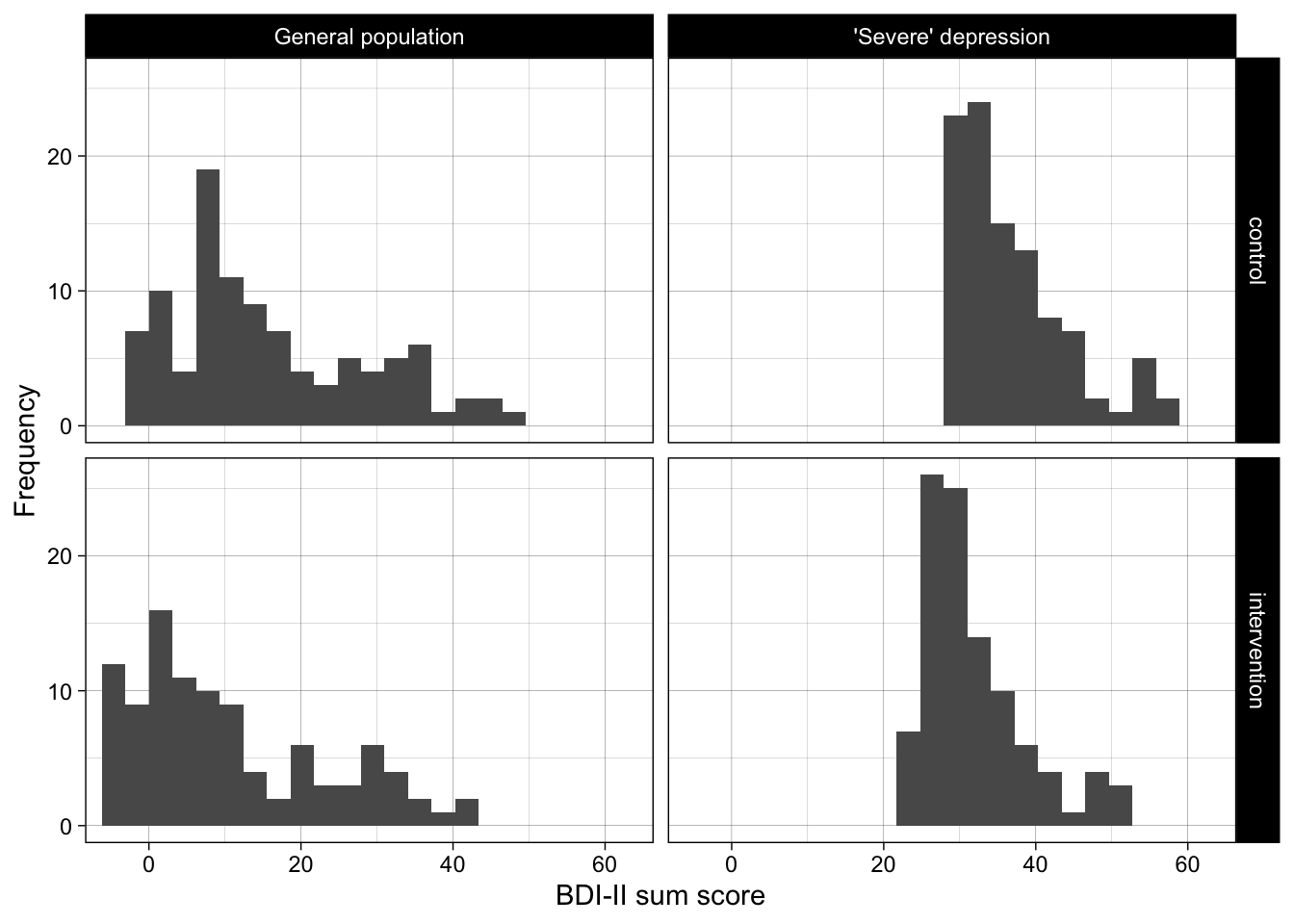

17.4.1.2 Plot

bind_rows(subset_no_preselection,
          subset_preselection_for_severe) |>
  mutate(recruitment = fct_relevel(recruitment, "General population", "'Severe' depression")) |>
  ## plot
  ggplot(aes(bdi_score)) +
  geom_histogram(boundary = 0, bins = 21) +
  scale_fill_viridis_d(begin = 0.3, end = 0.7) +
  theme_linedraw() +
  coord_cartesian(xlim = c(-5, 63)) +
  facet_grid(condition ~ recruitment) +
  xlab("BDI-II sum score") +
  ylab("Frequency")

17.4.1.3 Analyze

Exercise:

For each of the two datasets, please calculate:

The unstandardized difference in means between the groups. To do this, calculate the mean BDI-II score in each condition (control vs intervention) and then the difference between the two means.
The standardized mean difference (Cohen’s d) between the two groups (e.g., using effsize::cohen.d()).

Does the intervention work? Think about the simulated population effect.

# datasets:
subset_no_preselection

id	recruitment	condition	bdi_score
2527472	General population	control	2
2527472	General population	intervention	-3
2516002	General population	control	9
2516002	General population	intervention	4
2553222	General population	control	33
2553222	General population	intervention	28
2551678	General population	control	26
2551678	General population	intervention	21
2555281	General population	control	13
2555281	General population	intervention	8
2553095	General population	control	39
2553095	General population	intervention	34
2537456	General population	control	0
2537456	General population	intervention	-5
2501685	General population	control	8
2501685	General population	intervention	3
2552741	General population	control	14
2552741	General population	intervention	9
2558996	General population	control	9
2558996	General population	intervention	4
2499685	General population	control	15
2499685	General population	intervention	10
2517834	General population	control	48
2517834	General population	intervention	43
2508461	General population	control	26
2508461	General population	intervention	21
2531306	General population	control	24
2531306	General population	intervention	19
2520038	General population	control	13
2520038	General population	intervention	8
2547996	General population	control	0
2547996	General population	intervention	-5
2558879	General population	control	20
2558879	General population	intervention	15
2530195	General population	control	4
2530195	General population	intervention	-1
2557783	General population	control	1
2557783	General population	intervention	-4
2548425	General population	control	22
2548425	General population	intervention	17
2549930	General population	control	0
2549930	General population	intervention	-5
2531227	General population	control	46
2531227	General population	intervention	41
2554305	General population	control	11
2554305	General population	intervention	6
2547277	General population	control	9
2547277	General population	intervention	4
2513235	General population	control	17
2513235	General population	intervention	12
2559230	General population	control	3
2559230	General population	intervention	-2
2523816	General population	control	7
2523816	General population	intervention	2
2558898	General population	control	25
2558898	General population	intervention	20
2561074	General population	control	4
2561074	General population	intervention	-1
2553278	General population	control	10
2553278	General population	intervention	5
2514932	General population	control	16
2514932	General population	intervention	11
2519879	General population	control	0
2519879	General population	intervention	-5
2515591	General population	control	7
2515591	General population	intervention	2
2558337	General population	control	33
2558337	General population	intervention	28
2546768	General population	control	31
2546768	General population	intervention	26
2549738	General population	control	7
2549738	General population	intervention	2
2507151	General population	control	20
2507151	General population	intervention	15
2510571	General population	control	35
2510571	General population	intervention	30
2511959	General population	control	0
2511959	General population	intervention	-5
2525259	General population	control	10
2525259	General population	intervention	5
2549778	General population	control	14
2549778	General population	intervention	9
2544481	General population	control	33
2544481	General population	intervention	28
2548774	General population	control	12
2548774	General population	intervention	7
2556311	General population	control	7
2556311	General population	intervention	2
2548300	General population	control	29
2548300	General population	intervention	24
2532034	General population	control	28
2532034	General population	intervention	23
2513364	General population	control	7
2513364	General population	intervention	2
2519655	General population	control	41
2519655	General population	intervention	36
2506427	General population	control	8
2506427	General population	intervention	3
2550441	General population	control	0
2550441	General population	intervention	-5
2518969	General population	control	7
2518969	General population	intervention	2
2545465	General population	control	20
2545465	General population	intervention	15
2550240	General population	control	16
2550240	General population	intervention	11
2543268	General population	control	22
2543268	General population	intervention	17
2541078	General population	control	11
2541078	General population	intervention	6
2501062	General population	control	1
2501062	General population	intervention	-4
2525777	General population	control	8
2525777	General population	intervention	3
2500351	General population	control	8
2500351	General population	intervention	3
2560016	General population	control	16
2560016	General population	intervention	11
2505081	General population	control	16
2505081	General population	intervention	11
2561422	General population	control	5
2561422	General population	intervention	0
2505565	General population	control	1
2505565	General population	intervention	-4
2549962	General population	control	37
2549962	General population	intervention	32
2503861	General population	control	16
2503861	General population	intervention	11
2549668	General population	control	16
2549668	General population	intervention	11
2544579	General population	control	2
2544579	General population	intervention	-3
2499256	General population	control	12
2499256	General population	intervention	7
2556492	General population	control	26
2556492	General population	intervention	21
2550033	General population	control	20
2550033	General population	intervention	15
2549858	General population	control	12
2549858	General population	intervention	7
2504136	General population	control	13
2504136	General population	intervention	8
2548183	General population	control	37
2548183	General population	intervention	32
2516182	General population	control	4
2516182	General population	intervention	-1
2548959	General population	control	26
2548959	General population	intervention	21
2514635	General population	control	7
2514635	General population	intervention	2
2507219	General population	control	35
2507219	General population	intervention	30
2549913	General population	control	32
2549913	General population	intervention	27
2504963	General population	control	1
2504963	General population	intervention	-4
2549937	General population	control	1
2549937	General population	intervention	-4
2514793	General population	control	32
2514793	General population	intervention	27
2519828	General population	control	2
2519828	General population	intervention	-3
2504576	General population	control	41
2504576	General population	intervention	36
2545612	General population	control	10
2545612	General population	intervention	5
2553651	General population	control	37
2553651	General population	intervention	32
2551266	General population	control	15
2551266	General population	intervention	10
2547101	General population	control	10
2547101	General population	intervention	5
2514455	General population	control	0
2514455	General population	intervention	-5
2544235	General population	control	44
2544235	General population	intervention	39
2502742	General population	control	10
2502742	General population	intervention	5
2547075	General population	control	8
2547075	General population	intervention	3
2549443	General population	control	2
2549443	General population	intervention	-3
2519041	General population	control	8
2519041	General population	intervention	3
2538828	General population	control	7
2538828	General population	intervention	2
2520951	General population	control	11
2520951	General population	intervention	6
2522047	General population	control	13
2522047	General population	intervention	8
2552493	General population	control	28
2552493	General population	intervention	23
2528997	General population	control	7
2528997	General population	intervention	2
2560321	General population	control	7
2560321	General population	intervention	2
2552977	General population	control	13
2552977	General population	intervention	8
2556889	General population	control	36
2556889	General population	intervention	31

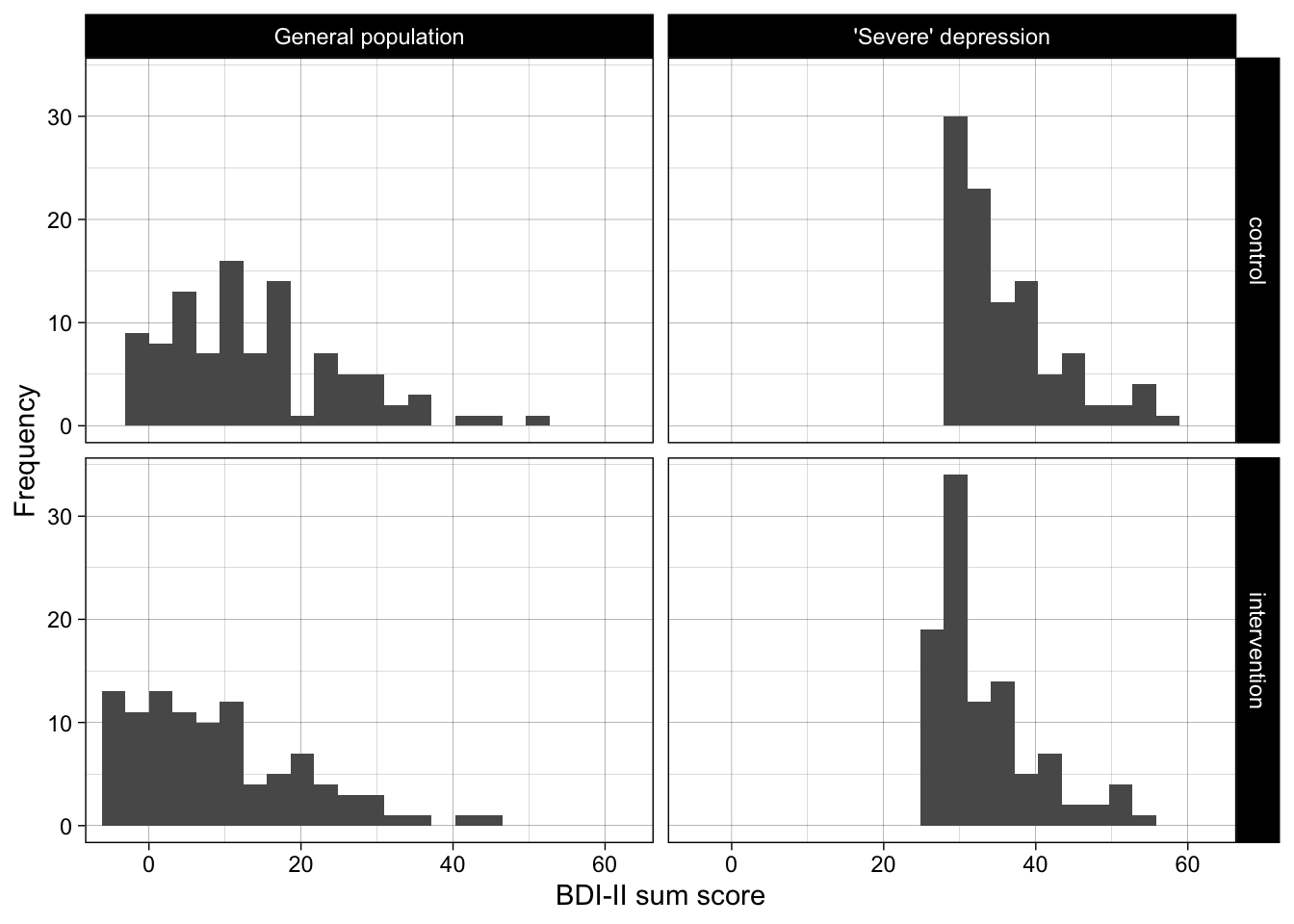

subset_preselection_for_severe

id	recruitment	condition	bdi_score
2519655	‘Severe’ depression	control	41
2519655	‘Severe’ depression	intervention	36
2551157	‘Severe’ depression	control	32
2551157	‘Severe’ depression	intervention	27
2514051	‘Severe’ depression	control	40
2514051	‘Severe’ depression	intervention	35
2513857	‘Severe’ depression	control	42
2513857	‘Severe’ depression	intervention	37
2559761	‘Severe’ depression	control	38
2559761	‘Severe’ depression	intervention	33
2544794	‘Severe’ depression	control	44
2544794	‘Severe’ depression	intervention	39
2553080	‘Severe’ depression	control	36
2553080	‘Severe’ depression	intervention	31
2507219	‘Severe’ depression	control	35
2507219	‘Severe’ depression	intervention	30
2548089	‘Severe’ depression	control	44
2548089	‘Severe’ depression	intervention	39
2510412	‘Severe’ depression	control	34
2510412	‘Severe’ depression	intervention	29
2542607	‘Severe’ depression	control	39
2542607	‘Severe’ depression	intervention	34
2504292	‘Severe’ depression	control	38
2504292	‘Severe’ depression	intervention	33
2547141	‘Severe’ depression	control	42
2547141	‘Severe’ depression	intervention	37
2501026	‘Severe’ depression	control	33
2501026	‘Severe’ depression	intervention	28
2560956	‘Severe’ depression	control	44
2560956	‘Severe’ depression	intervention	39
2553853	‘Severe’ depression	control	32
2553853	‘Severe’ depression	intervention	27
2547241	‘Severe’ depression	control	57
2547241	‘Severe’ depression	intervention	52
2554118	‘Severe’ depression	control	51
2554118	‘Severe’ depression	intervention	46
2510045	‘Severe’ depression	control	35
2510045	‘Severe’ depression	intervention	30
2553418	‘Severe’ depression	control	30
2553418	‘Severe’ depression	intervention	25
2544508	‘Severe’ depression	control	35
2544508	‘Severe’ depression	intervention	30
2555123	‘Severe’ depression	control	35
2555123	‘Severe’ depression	intervention	30
2512871	‘Severe’ depression	control	39
2512871	‘Severe’ depression	intervention	34
2544617	‘Severe’ depression	control	40
2544617	‘Severe’ depression	intervention	35
2553651	‘Severe’ depression	control	37
2553651	‘Severe’ depression	intervention	32
2543061	‘Severe’ depression	control	34
2543061	‘Severe’ depression	intervention	29
2504475	‘Severe’ depression	control	34
2504475	‘Severe’ depression	intervention	29
2510585	‘Severe’ depression	control	34
2510585	‘Severe’ depression	intervention	29
2503608	‘Severe’ depression	control	32
2503608	‘Severe’ depression	intervention	27
2549635	‘Severe’ depression	control	31
2549635	‘Severe’ depression	intervention	26
2552848	‘Severe’ depression	control	55
2552848	‘Severe’ depression	intervention	50
2513202	‘Severe’ depression	control	29
2513202	‘Severe’ depression	intervention	24
2527630	‘Severe’ depression	control	34
2527630	‘Severe’ depression	intervention	29
2519682	‘Severe’ depression	control	31
2519682	‘Severe’ depression	intervention	26
2545452	‘Severe’ depression	control	32
2545452	‘Severe’ depression	intervention	27
2558337	‘Severe’ depression	control	33
2558337	‘Severe’ depression	intervention	28
2544453	‘Severe’ depression	control	31
2544453	‘Severe’ depression	intervention	26
2546759	‘Severe’ depression	control	29
2546759	‘Severe’ depression	intervention	24
2524639	‘Severe’ depression	control	38
2524639	‘Severe’ depression	intervention	33
2556658	‘Severe’ depression	control	43
2556658	‘Severe’ depression	intervention	38
2548854	‘Severe’ depression	control	39
2548854	‘Severe’ depression	intervention	34
2553870	‘Severe’ depression	control	33
2553870	‘Severe’ depression	intervention	28
2556889	‘Severe’ depression	control	36
2556889	‘Severe’ depression	intervention	31
2550345	‘Severe’ depression	control	31
2550345	‘Severe’ depression	intervention	26
2509595	‘Severe’ depression	control	53
2509595	‘Severe’ depression	intervention	48
2548300	‘Severe’ depression	control	29
2548300	‘Severe’ depression	intervention	24
2512751	‘Severe’ depression	control	30
2512751	‘Severe’ depression	intervention	25
2550823	‘Severe’ depression	control	37
2550823	‘Severe’ depression	intervention	32
2554001	‘Severe’ depression	control	38
2554001	‘Severe’ depression	intervention	33
2500765	‘Severe’ depression	control	30
2500765	‘Severe’ depression	intervention	25
2512004	‘Severe’ depression	control	42
2512004	‘Severe’ depression	intervention	37
2541654	‘Severe’ depression	control	29
2541654	‘Severe’ depression	intervention	24
2551370	‘Severe’ depression	control	47
2551370	‘Severe’ depression	intervention	42
2548377	‘Severe’ depression	control	33
2548377	‘Severe’ depression	intervention	28
2559077	‘Severe’ depression	control	30
2559077	‘Severe’ depression	intervention	25
2549580	‘Severe’ depression	control	37
2549580	‘Severe’ depression	intervention	32
2553886	‘Severe’ depression	control	54
2553886	‘Severe’ depression	intervention	49
2546920	‘Severe’ depression	control	33
2546920	‘Severe’ depression	intervention	28
2554844	‘Severe’ depression	control	32
2554844	‘Severe’ depression	intervention	27
2518232	‘Severe’ depression	control	38
2518232	‘Severe’ depression	intervention	33
2549913	‘Severe’ depression	control	32
2549913	‘Severe’ depression	intervention	27
2544779	‘Severe’ depression	control	34
2544779	‘Severe’ depression	intervention	29
2556734	‘Severe’ depression	control	53
2556734	‘Severe’ depression	intervention	48
2521318	‘Severe’ depression	control	38
2521318	‘Severe’ depression	intervention	33
2508378	‘Severe’ depression	control	31
2508378	‘Severe’ depression	intervention	26
2509787	‘Severe’ depression	control	37
2509787	‘Severe’ depression	intervention	32
2549528	‘Severe’ depression	control	32
2549528	‘Severe’ depression	intervention	27
2545965	‘Severe’ depression	control	44
2545965	‘Severe’ depression	intervention	39
2553256	‘Severe’ depression	control	40
2553256	‘Severe’ depression	intervention	35
2540711	‘Severe’ depression	control	46
2540711	‘Severe’ depression	intervention	41
2548463	‘Severe’ depression	control	32
2548463	‘Severe’ depression	intervention	27
2531227	‘Severe’ depression	control	46
2531227	‘Severe’ depression	intervention	41
2504853	‘Severe’ depression	control	54
2504853	‘Severe’ depression	intervention	49
2526846	‘Severe’ depression	control	29
2526846	‘Severe’ depression	intervention	24
2503899	‘Severe’ depression	control	30
2503899	‘Severe’ depression	intervention	25
2561103	‘Severe’ depression	control	44
2561103	‘Severe’ depression	intervention	39
2527263	‘Severe’ depression	control	31
2527263	‘Severe’ depression	intervention	26
2516049	‘Severe’ depression	control	31
2516049	‘Severe’ depression	intervention	26
2551475	‘Severe’ depression	control	36
2551475	‘Severe’ depression	intervention	31
2499508	‘Severe’ depression	control	29
2499508	‘Severe’ depression	intervention	24
2550301	‘Severe’ depression	control	34
2550301	‘Severe’ depression	intervention	29
2510571	‘Severe’ depression	control	35
2510571	‘Severe’ depression	intervention	30
2550755	‘Severe’ depression	control	57
2550755	‘Severe’ depression	intervention	52
2499556	‘Severe’ depression	control	29
2499556	‘Severe’ depression	intervention	24
2549645	‘Severe’ depression	control	30
2549645	‘Severe’ depression	intervention	25
2501892	‘Severe’ depression	control	41
2501892	‘Severe’ depression	intervention	36
2542031	‘Severe’ depression	control	35
2542031	‘Severe’ depression	intervention	30
2499648	‘Severe’ depression	control	35
2499648	‘Severe’ depression	intervention	30
2556565	‘Severe’ depression	control	30
2556565	‘Severe’ depression	intervention	25
2558817	‘Severe’ depression	control	30
2558817	‘Severe’ depression	intervention	25
2527483	‘Severe’ depression	control	34
2527483	‘Severe’ depression	intervention	29
2548305	‘Severe’ depression	control	35
2548305	‘Severe’ depression	intervention	30
2517834	‘Severe’ depression	control	48
2517834	‘Severe’ depression	intervention	43
2521337	‘Severe’ depression	control	39
2521337	‘Severe’ depression	intervention	34
2550458	‘Severe’ depression	control	32
2550458	‘Severe’ depression	intervention	27
2514793	‘Severe’ depression	control	32
2514793	‘Severe’ depression	intervention	27
2552432	‘Severe’ depression	control	33
2552432	‘Severe’ depression	intervention	28
2530498	‘Severe’ depression	control	31
2530498	‘Severe’ depression	intervention	26
2504576	‘Severe’ depression	control	41
2504576	‘Severe’ depression	intervention	36
2502986	‘Severe’ depression	control	41
2502986	‘Severe’ depression	intervention	36

Solution

subset_no_preselection |>
  group_by(condition) |>
  summarize(mean_bdi_score = mean(bdi_score)) |>
  pivot_wider(names_from = condition,
              values_from = mean_bdi_score) |>
  mutate(mean_diff = intervention - control)

control	intervention	mean_diff
15.65	10.65	-5

subset_preselection_for_severe |>
  group_by(condition) |>
  summarize(mean_bdi_score = mean(bdi_score)) |>
  pivot_wider(names_from = condition,
              values_from = mean_bdi_score) |>
  mutate(mean_diff = intervention - control)

control	intervention	mean_diff
36.95	31.95	-5

effsize::cohen.d(formula = bdi_score ~ condition,
                 data = subset_no_preselection)$estimate |>
  round_half_up(2)

[1] 0.4

effsize::cohen.d(formula = bdi_score ~ condition,
                 data = subset_preselection_for_severe)$estimate |>
  round_half_up(2)

[1] 0.71

Equivalent change in means, different change in Cohen’s d

We know for a fact that the true difference in means is the same in both studies, because we create the data to be this way (i.e., scores at post are exactly pre - 5). The unstandardized effect sizes (pre-post difference in means) are the same, by definition.

Despite this, the two studies produce the different Cohen’s d values. The standardized effect sizes are the different, despite exactly the same pre-post differences between the studies.

If the point of standardized effect sizes is to be able to compare them between studies on a common scale, and they don’t do this, what is their point?

17.4.2 Example 2

The only difference here is a) the true difference in means and b) the seed.

17.4.2.1 Wrangle/simulate

set.seed(46)

subset_no_preselection <- data_bdi |>
  rename(control = bdi_score) |>
  # simulate a 'intervention' score that is 5 points lower than pre
  mutate(intervention = control - 5) |>
  # sample 100 participants from the real data
  slice_sample(n = 100) |>
  mutate(recruitment = "General population") |>
  # reshape
  pivot_longer(cols = c(control, intervention),
               names_to = "condition",
               values_to = "bdi_score") |>
  mutate(condition = fct_relevel(condition, "control", "intervention"))


subset_preselection_for_severe <- data_bdi |>
  rename(control = bdi_score) |>
  # simulate recruitment into the study requiring a score of 29 or more at pre ("severe" depression according to the BDI-II manual)
  filter(control >= 29) |>
  # simulate a 'intervention' score that is 5 points lower than pre
  mutate(intervention = control - 3) |>
  # sample 100 participants from the real data
  slice_sample(n = 100) |>
  mutate(recruitment = "'Severe' depression") |>
  # reshape
  pivot_longer(cols = c(control, intervention),
               names_to = "condition",
               values_to = "bdi_score") |>
  mutate(condition = fct_relevel(condition, "control", "intervention"))

17.4.2.2 Plot

bind_rows(subset_no_preselection,
          subset_preselection_for_severe) |>
  mutate(recruitment = fct_relevel(recruitment, "General population", "'Severe' depression")) |>
  ## plot
  ggplot(aes(bdi_score)) +
  geom_histogram(boundary = 0, bins = 21) +
  scale_fill_viridis_d(begin = 0.3, end = 0.7) +
  theme_linedraw() +
  coord_cartesian(xlim = c(-5, 63)) +
  facet_grid(condition ~ recruitment) +
  xlab("BDI-II sum score") +
  ylab("Frequency")

17.4.2.3 Analyze

Exercise:

Again, for each of the two datasets, please calculate:

This is the unstandaridzied difference in means between the groups. To do this, calculate the mean BDI-II score in each condition (control vs intervention) and then the difference between the two means.
The standardized mean difference (Cohen’s d) between the two groups (e.g., using effsize::cohen.d()).

Does the intervention work? Think about the simulated population effect.

# datasets:
subset_no_preselection

id	recruitment	condition	bdi_score
2506327	General population	control	42
2506327	General population	intervention	37
2548703	General population	control	11
2548703	General population	intervention	6
2551646	General population	control	17
2551646	General population	intervention	12
2512827	General population	control	6
2512827	General population	intervention	1
2544327	General population	control	0
2544327	General population	intervention	-5
2551766	General population	control	24
2551766	General population	intervention	19
2530436	General population	control	24
2530436	General population	intervention	19
2540808	General population	control	12
2540808	General population	intervention	7
2548959	General population	control	26
2548959	General population	intervention	21
2510867	General population	control	12
2510867	General population	intervention	7
2553108	General population	control	26
2553108	General population	intervention	21
2540711	General population	control	46
2540711	General population	intervention	41
2512729	General population	control	18
2512729	General population	intervention	13
2543984	General population	control	4
2543984	General population	intervention	-1
2559732	General population	control	11
2559732	General population	intervention	6
2515274	General population	control	3
2515274	General population	intervention	-2
2552520	General population	control	10
2552520	General population	intervention	5
2543825	General population	control	36
2543825	General population	intervention	31
2543155	General population	control	4
2543155	General population	intervention	-1
2548449	General population	control	17
2548449	General population	intervention	12
2551189	General population	control	1
2551189	General population	intervention	-4
2553683	General population	control	16
2553683	General population	intervention	11
2549930	General population	control	0
2549930	General population	intervention	-5
2504288	General population	control	1
2504288	General population	intervention	-4
2519910	General population	control	6
2519910	General population	intervention	1
2542954	General population	control	7
2542954	General population	intervention	2
2541146	General population	control	8
2541146	General population	intervention	3
2531224	General population	control	6
2531224	General population	intervention	1
2527368	General population	control	21
2527368	General population	intervention	16
2541361	General population	control	13
2541361	General population	intervention	8
2544818	General population	control	10
2544818	General population	intervention	5
2522166	General population	control	0
2522166	General population	intervention	-5
2507219	General population	control	35
2507219	General population	intervention	30
2551112	General population	control	18
2551112	General population	intervention	13
2549963	General population	control	17
2549963	General population	intervention	12
2549687	General population	control	30
2549687	General population	intervention	25
2558898	General population	control	25
2558898	General population	intervention	20
2510935	General population	control	23
2510935	General population	intervention	18
2555520	General population	control	1
2555520	General population	intervention	-4
2544611	General population	control	5
2544611	General population	intervention	0
2553870	General population	control	33
2553870	General population	intervention	28
2542178	General population	control	16
2542178	General population	intervention	11
2549904	General population	control	7
2549904	General population	intervention	2
2509302	General population	control	7
2509302	General population	intervention	2
2553823	General population	control	0
2553823	General population	intervention	-5
2561173	General population	control	29
2561173	General population	intervention	24
2519535	General population	control	3
2519535	General population	intervention	-2
2498971	General population	control	10
2498971	General population	intervention	5
2512946	General population	control	11
2512946	General population	intervention	6
2520077	General population	control	1
2520077	General population	intervention	-4
2527330	General population	control	17
2527330	General population	intervention	12
2499428	General population	control	27
2499428	General population	intervention	22
2547278	General population	control	4
2547278	General population	intervention	-1
2544025	General population	control	3
2544025	General population	intervention	-2
2505483	General population	control	4
2505483	General population	intervention	-1
2514095	General population	control	8
2514095	General population	intervention	3
2555643	General population	control	15
2555643	General population	intervention	10
2514291	General population	control	0
2514291	General population	intervention	-5
2551000	General population	control	17
2551000	General population	intervention	12
2525719	General population	control	4
2525719	General population	intervention	-1
2551282	General population	control	14
2551282	General population	intervention	9
2518729	General population	control	12
2518729	General population	intervention	7
2519682	General population	control	31
2519682	General population	intervention	26
2547505	General population	control	14
2547505	General population	intervention	9
2549988	General population	control	17
2549988	General population	intervention	12
2545175	General population	control	12
2545175	General population	intervention	7
2553770	General population	control	17
2553770	General population	intervention	12
2548364	General population	control	24
2548364	General population	intervention	19
2510321	General population	control	23
2510321	General population	intervention	18
2545612	General population	control	10
2545612	General population	intervention	5
2558821	General population	control	18
2558821	General population	intervention	13
2559201	General population	control	12
2559201	General population	intervention	7
2556197	General population	control	10
2556197	General population	intervention	5
2553022	General population	control	6
2553022	General population	intervention	1
2514165	General population	control	7
2514165	General population	intervention	2
2510389	General population	control	22
2510389	General population	intervention	17
2545062	General population	control	0
2545062	General population	intervention	-5
2505742	General population	control	10
2505742	General population	intervention	5
2559060	General population	control	0
2559060	General population	intervention	-5
2520329	General population	control	10
2520329	General population	intervention	5
2546870	General population	control	0
2546870	General population	intervention	-5
2553651	General population	control	37
2553651	General population	intervention	32
2553559	General population	control	22
2553559	General population	intervention	17
2525336	General population	control	14
2525336	General population	intervention	9
2556803	General population	control	0
2556803	General population	intervention	-5
2542629	General population	control	29
2542629	General population	intervention	24
2554118	General population	control	51
2554118	General population	intervention	46
2524644	General population	control	5
2524644	General population	intervention	0
2547633	General population	control	6
2547633	General population	intervention	1
2558908	General population	control	15
2558908	General population	intervention	10
2519789	General population	control	18
2519789	General population	intervention	13
2553853	General population	control	32
2553853	General population	intervention	27
2551288	General population	control	29
2551288	General population	intervention	24
2559380	General population	control	3
2559380	General population	intervention	-2
2518952	General population	control	17
2518952	General population	intervention	12
2508345	General population	control	6
2508345	General population	intervention	1
2558258	General population	control	25
2558258	General population	intervention	20
2510865	General population	control	14
2510865	General population	intervention	9
2511124	General population	control	7
2511124	General population	intervention	2
2555230	General population	control	11
2555230	General population	intervention	6

subset_preselection_for_severe

id	recruitment	condition	bdi_score
2518232	‘Severe’ depression	control	38
2518232	‘Severe’ depression	intervention	35
2512966	‘Severe’ depression	control	29
2512966	‘Severe’ depression	intervention	26
2550823	‘Severe’ depression	control	37
2550823	‘Severe’ depression	intervention	34
2519655	‘Severe’ depression	control	41
2519655	‘Severe’ depression	intervention	38
2543945	‘Severe’ depression	control	31
2543945	‘Severe’ depression	intervention	28
2545983	‘Severe’ depression	control	31
2545983	‘Severe’ depression	intervention	28
2552379	‘Severe’ depression	control	30
2552379	‘Severe’ depression	intervention	27
2553256	‘Severe’ depression	control	40
2553256	‘Severe’ depression	intervention	37
2555123	‘Severe’ depression	control	35
2555123	‘Severe’ depression	intervention	32
2558337	‘Severe’ depression	control	33
2558337	‘Severe’ depression	intervention	30
2551889	‘Severe’ depression	control	50
2551889	‘Severe’ depression	intervention	47
2506262	‘Severe’ depression	control	32
2506262	‘Severe’ depression	intervention	29
2556658	‘Severe’ depression	control	43
2556658	‘Severe’ depression	intervention	40
2548301	‘Severe’ depression	control	48
2548301	‘Severe’ depression	intervention	45
2549913	‘Severe’ depression	control	32
2549913	‘Severe’ depression	intervention	29
2502988	‘Severe’ depression	control	40
2502988	‘Severe’ depression	intervention	37
2556734	‘Severe’ depression	control	53
2556734	‘Severe’ depression	intervention	50
2550755	‘Severe’ depression	control	57
2550755	‘Severe’ depression	intervention	54
2504903	‘Severe’ depression	control	54
2504903	‘Severe’ depression	intervention	51
2551030	‘Severe’ depression	control	30
2551030	‘Severe’ depression	intervention	27
2524639	‘Severe’ depression	control	38
2524639	‘Severe’ depression	intervention	35
2556889	‘Severe’ depression	control	36
2556889	‘Severe’ depression	intervention	33
2512209	‘Severe’ depression	control	29
2512209	‘Severe’ depression	intervention	26
2504576	‘Severe’ depression	control	41
2504576	‘Severe’ depression	intervention	38
2548253	‘Severe’ depression	control	30
2548253	‘Severe’ depression	intervention	27
2550537	‘Severe’ depression	control	34
2550537	‘Severe’ depression	intervention	31
2554844	‘Severe’ depression	control	32
2554844	‘Severe’ depression	intervention	29
2504475	‘Severe’ depression	control	34
2504475	‘Severe’ depression	intervention	31
2503899	‘Severe’ depression	control	30
2503899	‘Severe’ depression	intervention	27
2527699	‘Severe’ depression	control	33
2527699	‘Severe’ depression	intervention	30
2549792	‘Severe’ depression	control	39
2549792	‘Severe’ depression	intervention	36
2510585	‘Severe’ depression	control	34
2510585	‘Severe’ depression	intervention	31
2559761	‘Severe’ depression	control	38
2559761	‘Severe’ depression	intervention	35
2507219	‘Severe’ depression	control	35
2507219	‘Severe’ depression	intervention	32
2547209	‘Severe’ depression	control	34
2547209	‘Severe’ depression	intervention	31
2543313	‘Severe’ depression	control	34
2543313	‘Severe’ depression	intervention	31
2548463	‘Severe’ depression	control	32
2548463	‘Severe’ depression	intervention	29
2550144	‘Severe’ depression	control	37
2550144	‘Severe’ depression	intervention	34
2546182	‘Severe’ depression	control	32
2546182	‘Severe’ depression	intervention	29
2551288	‘Severe’ depression	control	29
2551288	‘Severe’ depression	intervention	26
2509787	‘Severe’ depression	control	37
2509787	‘Severe’ depression	intervention	34
2541654	‘Severe’ depression	control	29
2541654	‘Severe’ depression	intervention	26
2513057	‘Severe’ depression	control	32
2513057	‘Severe’ depression	intervention	29
2558817	‘Severe’ depression	control	30
2558817	‘Severe’ depression	intervention	27
2527329	‘Severe’ depression	control	35
2527329	‘Severe’ depression	intervention	32
2501026	‘Severe’ depression	control	33
2501026	‘Severe’ depression	intervention	30
2531968	‘Severe’ depression	control	35
2531968	‘Severe’ depression	intervention	32
2553267	‘Severe’ depression	control	31
2553267	‘Severe’ depression	intervention	28
2544617	‘Severe’ depression	control	40
2544617	‘Severe’ depression	intervention	37
2551370	‘Severe’ depression	control	47
2551370	‘Severe’ depression	intervention	44
2530498	‘Severe’ depression	control	31
2530498	‘Severe’ depression	intervention	28
2504292	‘Severe’ depression	control	38
2504292	‘Severe’ depression	intervention	35
2528229	‘Severe’ depression	control	33
2528229	‘Severe’ depression	intervention	30
2520385	‘Severe’ depression	control	40
2520385	‘Severe’ depression	intervention	37
2552606	‘Severe’ depression	control	38
2552606	‘Severe’ depression	intervention	35
2546428	‘Severe’ depression	control	30
2546428	‘Severe’ depression	intervention	27
2544794	‘Severe’ depression	control	44
2544794	‘Severe’ depression	intervention	41
2514615	‘Severe’ depression	control	31
2514615	‘Severe’ depression	intervention	28
2546759	‘Severe’ depression	control	29
2546759	‘Severe’ depression	intervention	26
2505402	‘Severe’ depression	control	30
2505402	‘Severe’ depression	intervention	27
2548300	‘Severe’ depression	control	29
2548300	‘Severe’ depression	intervention	26
2547141	‘Severe’ depression	control	42
2547141	‘Severe’ depression	intervention	39
2553886	‘Severe’ depression	control	54
2553886	‘Severe’ depression	intervention	51
2561103	‘Severe’ depression	control	44
2561103	‘Severe’ depression	intervention	41
2547088	‘Severe’ depression	control	32
2547088	‘Severe’ depression	intervention	29
2546304	‘Severe’ depression	control	44
2546304	‘Severe’ depression	intervention	41
2531025	‘Severe’ depression	control	31
2531025	‘Severe’ depression	intervention	28
2520419	‘Severe’ depression	control	32
2520419	‘Severe’ depression	intervention	29
2559453	‘Severe’ depression	control	39
2559453	‘Severe’ depression	intervention	36
2516049	‘Severe’ depression	control	31
2516049	‘Severe’ depression	intervention	28
2548854	‘Severe’ depression	control	39
2548854	‘Severe’ depression	intervention	36
2501648	‘Severe’ depression	control	38
2501648	‘Severe’ depression	intervention	35
2552432	‘Severe’ depression	control	33
2552432	‘Severe’ depression	intervention	30
2499556	‘Severe’ depression	control	29
2499556	‘Severe’ depression	intervention	26
2545965	‘Severe’ depression	control	44
2545965	‘Severe’ depression	intervention	41
2553021	‘Severe’ depression	control	39
2553021	‘Severe’ depression	intervention	36
2553853	‘Severe’ depression	control	32
2553853	‘Severe’ depression	intervention	29
2510571	‘Severe’ depression	control	35
2510571	‘Severe’ depression	intervention	32
2553588	‘Severe’ depression	control	34
2553588	‘Severe’ depression	intervention	31
2514401	‘Severe’ depression	control	44
2514401	‘Severe’ depression	intervention	41
2508351	‘Severe’ depression	control	50
2508351	‘Severe’ depression	intervention	47
2550301	‘Severe’ depression	control	34
2550301	‘Severe’ depression	intervention	31
2551788	‘Severe’ depression	control	30
2551788	‘Severe’ depression	intervention	27
2549687	‘Severe’ depression	control	30
2549687	‘Severe’ depression	intervention	27
2506327	‘Severe’ depression	control	42
2506327	‘Severe’ depression	intervention	39
2546768	‘Severe’ depression	control	31
2546768	‘Severe’ depression	intervention	28
2510045	‘Severe’ depression	control	35
2510045	‘Severe’ depression	intervention	32
2559077	‘Severe’ depression	control	30
2559077	‘Severe’ depression	intervention	27
2540711	‘Severe’ depression	control	46
2540711	‘Severe’ depression	intervention	43
2513202	‘Severe’ depression	control	29
2513202	‘Severe’ depression	intervention	26
2519682	‘Severe’ depression	control	31
2519682	‘Severe’ depression	intervention	28
2544779	‘Severe’ depression	control	34
2544779	‘Severe’ depression	intervention	31
2549962	‘Severe’ depression	control	37
2549962	‘Severe’ depression	intervention	34
2507016	‘Severe’ depression	control	31
2507016	‘Severe’ depression	intervention	28
2548305	‘Severe’ depression	control	35
2548305	‘Severe’ depression	intervention	32
2544392	‘Severe’ depression	control	44
2544392	‘Severe’ depression	intervention	41
2549635	‘Severe’ depression	control	31
2549635	‘Severe’ depression	intervention	28
2552848	‘Severe’ depression	control	55
2552848	‘Severe’ depression	intervention	52
2554368	‘Severe’ depression	control	30
2554368	‘Severe’ depression	intervention	27
2550458	‘Severe’ depression	control	32
2550458	‘Severe’ depression	intervention	29

Solution

subset_no_preselection |>
  group_by(condition) |>
  summarize(mean_bdi_score = mean(bdi_score)) |>
  pivot_wider(names_from = condition,
              values_from = mean_bdi_score) |>
  mutate(mean_diff = intervention - control)

control	intervention	mean_diff
14.18	9.18	-5

subset_preselection_for_severe |>
  group_by(condition) |>
  summarize(mean_bdi_score = mean(bdi_score)) |>
  pivot_wider(names_from = condition,
              values_from = mean_bdi_score) |>
  mutate(mean_diff = intervention - control)

control	intervention	mean_diff
36.2	33.2	-3

effsize::cohen.d(formula = bdi_score ~ condition,
                 data = subset_no_preselection)$estimate |>
  round_half_up(2)

[1] 0.45

effsize::cohen.d(formula = bdi_score ~ condition,
                 data = subset_preselection_for_severe)$estimate |>
  round_half_up(2)

[1] 0.45

We know for a fact that the true difference in means is different, because we create the data to be this way (i.e., pre-post difference is -5 in the no preselection study and -3 in the severe depression preselection study). The unstandardized effect sizes (pre-post difference in means) are different, by definition.

Despite this, the two studies produce the same Cohen’s d value. The standardized effect sizes are the same, despite genuine differences in the pre-post changes between the two studies.

If the same standardized effect size estimate (Cohen’s d) can represent different real changes in means, how can a Cohen’s d of .2, for example, represent “small” effects? That is, if “small” effects on standardized effect sizes can represent unstandardized effect sizes of different sizes, how are standardized effect sizes ‘standardized’ at all?

17.5 Explanation

The above results - where the same unstandarized effect sizes have different standardized effect sizes, or vice-versa - are due to the fact that standardized effect sizes involve dividing, in one way or another, unstandardized effect sizes by standard deviations.

E.g., for Cohen’s \(d\):

\(d = \frac{M_{intervention} - M_{control}}{SD_{pooled}}\)

Most researchers are far more interested in the numerator than the denominator.

Researchers often care about how much the means differ between the intervention and control groups. Differences in the means determine whether the intervention ‘worked’ or not.
They usually care very little about what the SD, except perhaps if they’re assessing statistical assumptions (homogeneity of variances).

Despite this, the value of the SDs heavily influences the standardized effect size.

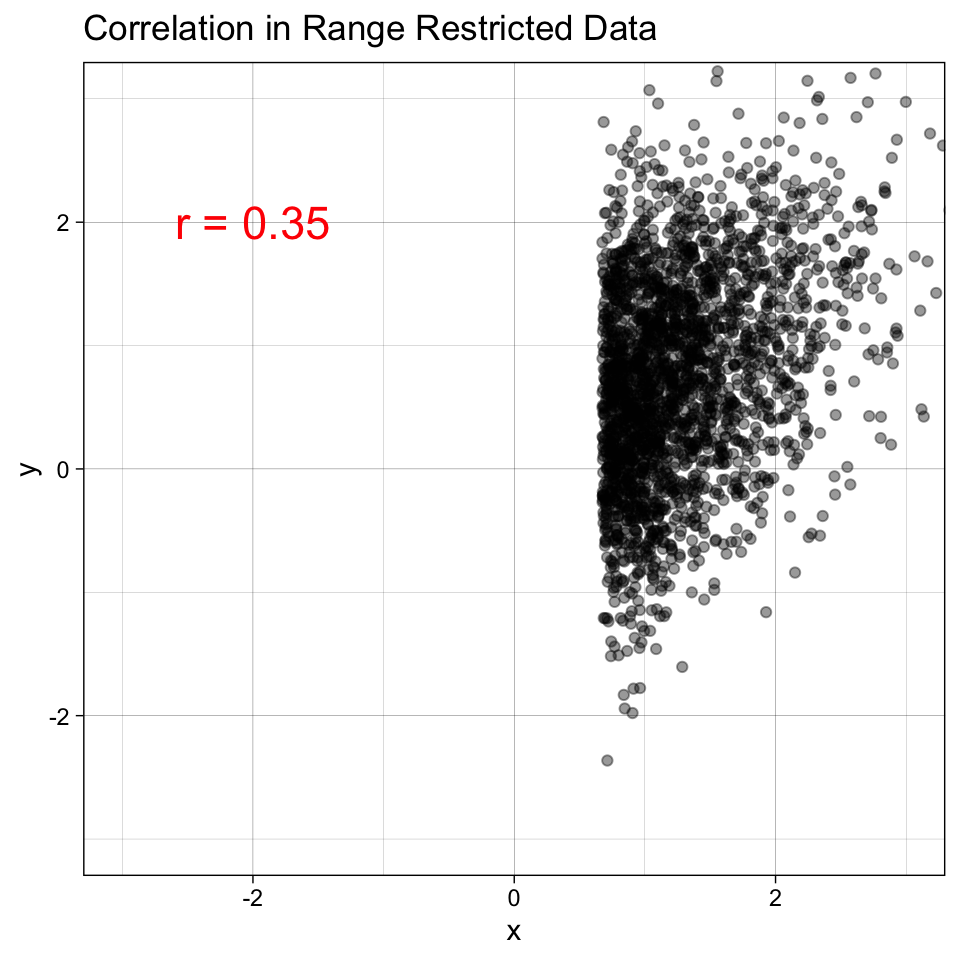

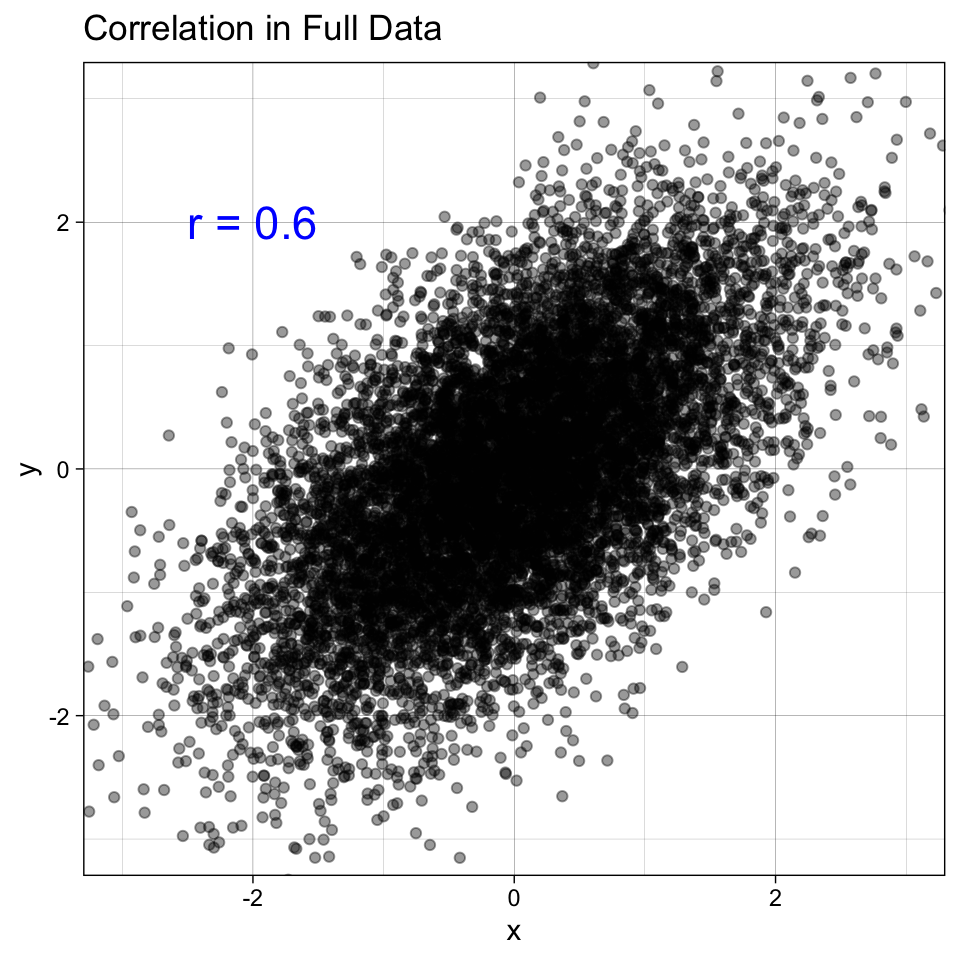

In the above examples, the range restriction in the ‘severe’ depression condition produces a narrower range of scores, and therefore smaller smaller SDs. Dividing the same difference in means by a smaller value of SD produces a different Cohen’s d estimate.

Range restrictions like these are extremely common in psychology research, where studies can differ in their inclusion/exclusion strategies. This means makes it far harder to compare ‘standardized’ effect sizes between studies than you might think.

17.5.1 Standardized effect sizes require estimating multiple parameters

Cohen’s d (usually) involves having to create a sample estimate of the means in each group. Researchers are usually more interested in differences between means.

But it also involves having to estimate the SDs. This can be a little a little confusing the first time you encounter it: we often intuitively think of SD as the amount of noise around the signal we’re interested in (the mean). We are somewhat more used to thinking about the fact that estimated means have error round them: the standard error of the mean (SEM) is used to calculate confidence intervals around means, and the SEM is actually just the SD of the mean (as opposed to normal SD, which is SD of the data).

We are relatively less familiar with thinking about the fact that estimates of standard deviation also are estimated with error, e.g., the standard error of the SD, which is the SD of the SD. Confused yet?

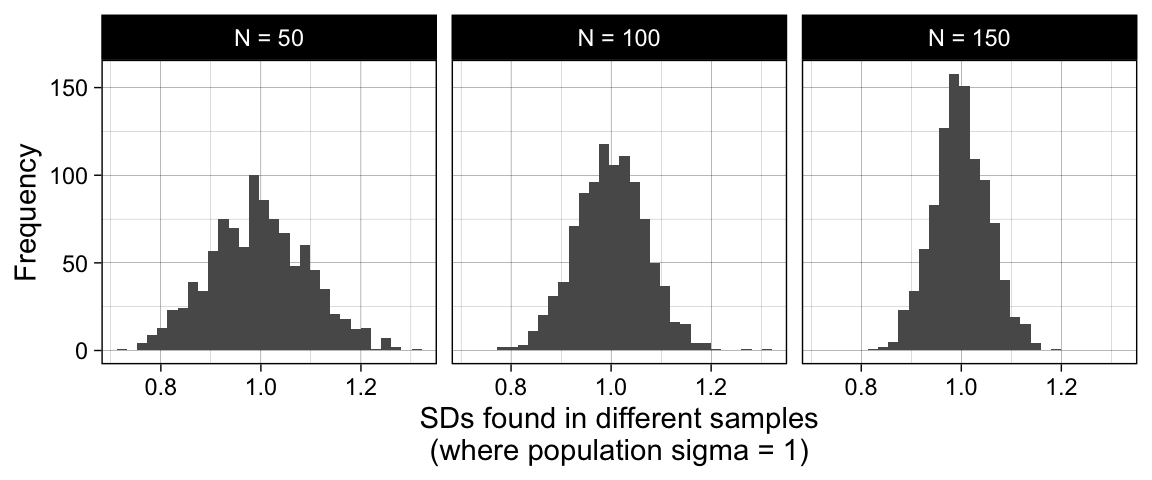

We can understand this more easily with a simulation. We generate data for a single sample with a population mean (\(\mu\)) = 0 and population SD (\(\sigma\)) = 1.

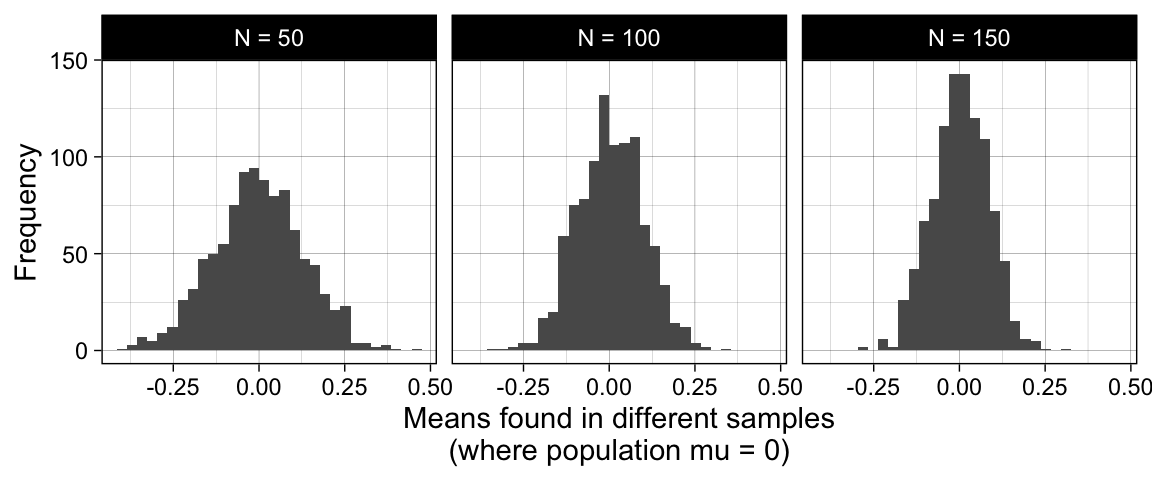

Across lots of iterations, we can see that the average sample mean is close to the population mean (\(\mu\)), and the average sample SD is close to the population (\(\sigma\)):

# set the seed ----
# for the pseudo random number generator to make results reproducible
set.seed(123)


# define data generating function ----
generate_data <- function(n,
                          mean,
                          sd) {

  data <- tibble(score = rnorm(n = n, mean = mean, sd = sd))

  return(data)
}


# define data analysis function ----
analyse_data <- function(data) {

  res <- data |>
    summarize(sample_mean = mean(score),
              sample_sd = sd(score))

  return(res)
}


# define experiment parameters ----
experiment_parameters_grid <- expand_grid(
  n = c(50, 100, 150),
  mean = 0,
  sd = 1,
  iteration = 1:1000
)


# run simulation ----
simulation <-
  # using the experiment parameters
  experiment_parameters_grid |>

  # generate data using the data generating function and the parameters relevant to data generation
  mutate(generated_data = pmap(list(n,
                                    mean,
                                    sd),
                               generate_data)) |>

  # apply the analysis function to the generated data using the parameters relevant to analysis
  mutate(analysis_results = pmap(list(generated_data),
                                 analyse_data))


# summarise simulation results over the iterations ----
simulation_summary <- simulation |>
  unnest(analysis_results)

simulation_summary |>
  group_by(n) |>
  summarize(average_sample_means = mean(sample_mean),
            average_sample_sds = mean(sample_sd)) |>
  mutate_if(is.numeric, janitor::round_half_up, digits = 2)

n	average_sample_means	average_sample_sds
50	0	1
100	0	1
150	0	1

But the estimated means in individual samples (i.e., individual iterations) vary around this true value (\(\mu\) = 0). The smaller the sample size, the more deviation there is from the population value:

simulation_summary |>
  mutate(n_string = paste("N =", n),
         n_string = fct_relevel(n_string, "N = 50", "N = 100", "N = 150")) |>
  ggplot(aes(sample_mean)) +
  geom_histogram(boundary = 0) +
  theme_linedraw() +
  ylab("Frequency") +
  xlab("Means found in different samples\n(where population mu = 0)") +
  facet_wrap(~ n_string)

The same applies to the estimated SDs in individual samples (i.e., individual iterations), which also vary around this true value (\(\sigma\) = 1). The smaller the sample size, the more deviation there is from the population value:

simulation_summary |>
  mutate(n_string = paste("N =", n),
         n_string = fct_relevel(n_string, "N = 50", "N = 100", "N = 150")) |>
  ggplot(aes(sample_sd)) +
  geom_histogram(boundary = 0) +
  theme_linedraw() +
  ylab("Frequency") +
  xlab("SDs found in different samples\n(where population sigma = 1)") +
  facet_wrap(~ n_string)

17.6 Solutions to this problem

There are solutions to this, to make “standardized” effect sizes actually standard between studies. But almost no one does them.

The when calculating standardized effect sizes, use a well established population norm estimate of the measure’s SD rather than the sample SD. E.g., always set the BDI’s SD to 12 (or whatever your best estimate is). Note that no implementations of Cohen’s d in commonly used R packages recommend this, and only a few can directly handle it (e.g., {esci}).
Use math/R packages to correct your standardised effect size estimate for range restriction (see Wiernik & Dahlke, 2020, doi: 10.1177/2515245919885611).

17.7 Is this issue limited to Cohen’s d?

No, it affects other forms of standardized effect sizes too, including correlations.

E.g., there is a perennial debate in the US about whether standardized university entrance tests like the SAT are useful or not, or indeed are biased or not (e.g., between gender and race/ethnicity), because straightforward analyses suggest that SAT scores (used to get a place at university) are poorly predictive of grades at university.

However, this poor predictive validity may be due in part to range restriction: because the SAT scores are used to determine who goes to university, data on university grades is only obtained from those individuals who already scored highly on the SAT. That is, there is a fairly narrow range of SAT scores among university students. Correlations, like Cohen’s d, include SD in their denominator (i.e., \(r = covariance_{xy}/(SD_x*SD_y)\)), and therefore range restriction also distorts correlations.

It is therefore possible - indeed, likely - that SAT scores are usefully predictive of grades at university. The below short simulation demonstrates attentuation in correlations due to range constraint.

# Set seed for reproducibility
set.seed(42)

# Parameters
n <- 10000  # number of observations
rho <- 0.6  # correlation between x and y

# Generate correlated data using the faux package
simulated_data <- rnorm_multi(n = n,
                              mu = c(0, 0),
                              sd = c(1, 1),
                              r = matrix(c(1, rho,
                                           rho, 1), nrow = 2),
                              varnames = c("x", "y"))

# Calculate correlation in full data
full_correlation <- cor(simulated_data$x, simulated_data$y)
cat("Correlation in full data:", janitor::round_half_up(full_correlation, digits = 2), "\n")

Correlation in full data: 0.6

# Introduce range restriction (e.g., keep only x > -0.5 and x < 0.5)
simulated_data_range_restricted <- simulated_data |>
  filter(x > qnorm(0.75)) # top 25% of a normal population corresponds to SD > qnorm(0.75), ie 0.6744898

# Calculate correlation in restricted data
restricted_correlation <- cor(simulated_data_range_restricted$x, simulated_data_range_restricted$y)
cat("Correlation in restricted data:", janitor::round_half_up(restricted_correlation, digits = 2), "\n")

Correlation in restricted data: 0.35

# Plot full data with correlation annotation
ggplot(simulated_data, aes(x = x, y = y)) +
  geom_point(alpha = 0.4) +
  #geom_smooth(method = "lm", se = FALSE, color = "blue") +
  ggtitle("Correlation in Full Data") +
  theme_linedraw() +
  annotate("text", x = -2, y = 2, label = paste("r =", round(full_correlation, 2)),
           hjust = 0.5, vjust = 0.5, size = 6, color = "blue") +
  coord_cartesian(xlim = c(-3, 3), ylim = c(-3, 3))

# Plot restricted data with correlation annotation
ggplot(simulated_data_range_restricted, aes(x = x, y = y)) +
  geom_point(alpha = 0.4) +
  #geom_smooth(method = "lm", se = FALSE, color = "red") +
  ggtitle("Correlation in Range Restricted Data") +
  theme_linedraw() +
  annotate("text", x = -2, y = 2, label = paste("r =", round(restricted_correlation, 2)),
           hjust = 0.5, vjust = 0.5, size = 6, color = "red") +
  coord_cartesian(xlim = c(-3, 3), ylim = c(-3, 3))

Note that the observed correlations which have been distorted due to range restriction can be ‘de-attentuated’ or corrected if normative data is available to know what the unrestricted range looks like. However, this is very rarely done in studies and meta-analyses.

# Calculate the variance ratios as an estimate of the range restriction factor
variance_ratio <- var(simulated_data_range_restricted$x) / var(simulated_data$x)

# Deattenuate the observed correlation
corrected_correlation <- restricted_correlation / sqrt(variance_ratio)

# Output results
cat("Observed Correlation (Restricted):", janitor::round_half_up(restricted_correlation, 2), "\n")

Observed Correlation (Restricted): 0.35

cat("Variance Ratio (Range Restriction Factor):", janitor::round_half_up(variance_ratio, 2), "\n")

Variance Ratio (Range Restriction Factor): 0.25

cat("Corrected Correlation (Deattenuated):", janitor::round_half_up(corrected_correlation, 2), "\n")

Corrected Correlation (Deattenuated): 0.69

Note that the corrected correlation is much closer to the original one.

sessionInfo()

R version 4.5.2 (2025-10-31)
Platform: aarch64-apple-darwin20
Running under: macOS Tahoe 26.4

Matrix products: default
BLAS:   /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libBLAS.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.5-arm64/Resources/lib/libRlapack.dylib;  LAPACK version 3.12.1

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

time zone: Europe/Zurich
tzcode source: internal

attached base packages:
[1] stats4    stats     graphics  grDevices utils     datasets  methods
[8] base

other attached packages:
 [1] faux_1.2.2      effsize_0.8.1   janitor_2.2.1   sn_2.1.1
 [5] scales_1.4.0    lubridate_1.9.4 forcats_1.0.1   stringr_1.6.0
 [9] dplyr_1.2.0     purrr_1.2.1     readr_2.1.5     tidyr_1.3.2
[13] tibble_3.3.1    ggplot2_4.0.2   tidyverse_2.0.0 knitr_1.50

loaded via a namespace (and not attached):
 [1] generics_0.1.4      stringi_1.8.7       roundwork_0.0.1
 [4] hms_1.1.3           digest_0.6.39       magrittr_2.0.4
 [7] evaluate_1.0.5      grid_4.5.2          timechange_0.3.0
[10] RColorBrewer_1.1-3  fastmap_1.2.0       jsonlite_2.0.0
[13] numDeriv_2016.8-1.1 mnormt_2.1.1        cli_3.6.5
[16] crayon_1.5.3        rlang_1.1.7         bit64_4.6.0-1
[19] withr_3.0.2         yaml_2.3.12         parallel_4.5.2
[22] tools_4.5.2         tzdb_0.5.0          vctrs_0.7.2
[25] R6_2.6.1            lifecycle_1.0.5     snakecase_0.11.1
[28] htmlwidgets_1.6.4   bit_4.6.0           vroom_1.6.6
[31] archive_1.1.12.1    pkgconfig_2.0.3     pillar_1.11.1
[34] gtable_0.3.6        glue_1.8.0          xfun_0.54
[37] tidyselect_1.2.1    rstudioapi_0.17.1   farver_2.1.2
[40] htmltools_0.5.9     labeling_0.4.3      rmarkdown_2.30
[43] compiler_4.5.2      S7_0.2.1
